Quick Details
characteristic
characteristic parameter
Place of Origin | Dongguan, Guangdong, China |
Brand name | kalun |

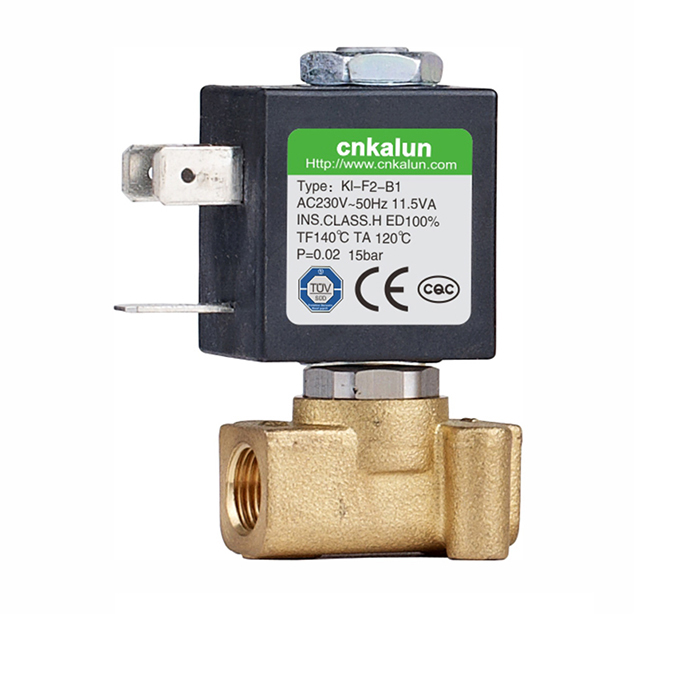

Product name | Micro solenoid valve |
model | Kl-F2-B1 |
Product certification | CE,TUV,CQC,RoHS REACH |
name | Two position two way solenoid valve |
Valve body material | PPS copper |
Drift diameter | 0.9mm,1.2mm,2.0mm,2.3mm,6.0mm. |
Selected voltage | DC12V,DC24V,AC110V,AC120V,AC220V,AC230V,AC240V |
Product application | Coffee machine, steam engine, steam, water |
Continuous operation, stable flow |
Good sealing, no leakage |
No noise, long service life |
High pressure |
Connection mode | cannula |
ambient temperature | -10°C ~ +120°C |
Fluid temperature | +140゚C |
Maximum working pressure difference M. O. P. D. | 0.02~20bar |
Kv flow | (1)0.5L/min (ø0.9mm) (2)0.7L/min (ø1.2mm) (3)1.8L/min (ø2.0mm) (4)2.3L/min (ø2.3mm) (5)4.0L/min (ø6.0mm) |
Now some high-end coffee machines can not only brew coffee of different tastes, but also control the temperature, concentration and fineness of coffee powder to meet the requiremen···
